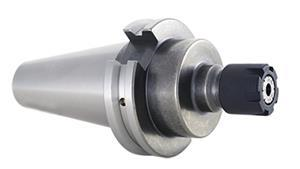

CAT40 x ER11 - 4 Inch, Precision ER Mini Nut Holder
- Item Code: 22354-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Body Diameter-Workpiece Side (in) | 0.748 |
|---|---|
| Overall Length (in) | 6.68 |
| Capacity Range (in) | 0.019" - 0.28" |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (mm) | 98.4 |
| Overall Length (mm) | 169.7 |
| Type | V-Flange Collet Chuck |
| Gage Length-Face Contact (in) | 3.87 |
| Overall Diameter (mm) | 63.5 |
| Taper | CAT40 |
| Collet Series | ER11 |
| Lock Nut Diameter (in) | 0.75 |
| Capacity Range (mm) | 0.5 - 7.1mm |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 19 |
| Lock Nut Diameter (mm) | 19.1 |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Gage Length (in) | 4 |
