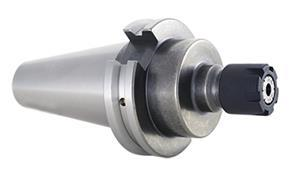

CAT40 x ER16 - 4 Inch, Precision ER Mini Nut Holder
- Item Code: 22358-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Balanced to | 25,000 RPM at G2.5 |
|---|---|
| Overall Length (in) | 6.68 |
| Body Diameter-Workpiece Side (mm) | 28 |
| Collet Series | ER16 |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (in) | 3.87 |
| Taper | CAT40 |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Lock Nut Diameter (in) | 1.26 |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
| Overall Length (mm) | 169.7 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Capacity Range (in) | 0.019" - 0.41" |
| Gage Length (in) | 4 |
| Gage Length-Face Contact (mm) | 98.4 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Lock Nut Diameter (mm) | 32 |
