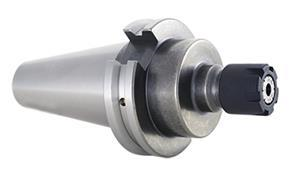

CAT40 x ER16 - 8 Inch, Precision ER Mini Nut Holder
- Item Code: 22359-8
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Taper | CAT40 |
|---|---|
| Capacity Range (mm) | 0.5 - 10.5mm |
| Lock Nut Diameter (in) | 1.26 |
| Material | 8620 Steel |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (mm) | 203.2 |
| Gage Length-Face Contact (in) | 7.87 |
| Gage Length-Face Contact (mm) | 200 |
| Body Diameter-Workpiece Side (mm) | 28 |
| Collet Series | ER16 |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Capacity Range (in) | 0.019" - 0.41" |
| Overall Diameter (in) | 2.5 |
| Overall Length (mm) | 271.3 |
| Unit of Tool | Metric or Inch |
| Gage Length (in) | 8 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Lock Nut Diameter (mm) | 32 |
| Overall Length (in) | 10.68 |
