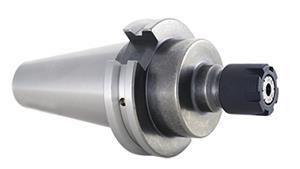

CAT40 x ER16 - 6 Inch, Precision ER Mini Nut Holder
- Item Code: 22359-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Capacity Range (mm) | 0.5 - 10.5mm |
|---|---|
| Gage Length (in) | 6 |
| Gage Length-Face Contact (in) | 5.87 |
| Overall Length (mm) | 220.5 |
| Taper | CAT40 |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
| Balanced to | 25,000 RPM at G2.5 |
| Lock Nut Diameter (mm) | 32 |
| Gage Length (mm) | 152.4 |
| Overall Length (in) | 8.68 |
| Type | V-Flange Collet Chuck |
| Gage Length-Face Contact (mm) | 149.2 |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Capacity Range (in) | 0.019" - 0.41" |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 28 |
| Collet Series | ER16 |
| Lock Nut Diameter (in) | 1.26 |
| Material | 8620 Steel |
