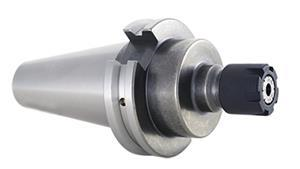

CAT40 x ER20 - 2.76 Inch, Precision ER Mini Nut Holder
- Item Code: 22360-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 66.9 |
|---|---|
| Capacity Range (in) | 0.019" - 0.55" |
| Lock Nut Diameter (in) | 1.38 |
| Overall Length (in) | 5.44 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (mm) | 34 |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Lock Nut Diameter (mm) | 35.1 |
| Type | V-Flange Collet Chuck |
| Gage Length (mm) | 70.104 |
| Material | 8620 Steel |
| Balanced to | 25,000 RPM at G2.5 |
| Overall Length (mm) | 138.2 |
| Taper | CAT40 |
| Collet Series | ER20 |
| Gage Length (in) | 2.76 |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
| Gage Length-Face Contact (in) | 2.63 |
| Overall Diameter (mm) | 63.5 |
