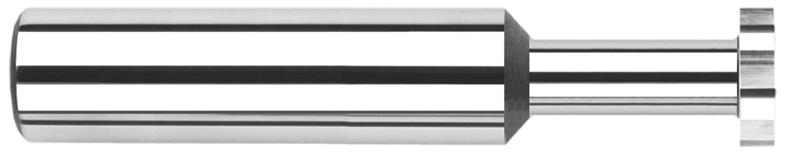

0.2500 in. (1/4) Cutter Diameter x 0.0620 in. (1/16) Width x 0.3750 in. (3/8) Neck Length 6 Flute Carbide Square Keyseat Cutter

  • Item Code: 22362-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Reach Multiple (1.5x)
Brand Harvey Tool
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Coating/Finish None
Neck Diameter 0.1250" (1/8)
Type I
Decimal Diameter 0.2500"
Shank Diameter 0.2500" (1/4)
Fractional Diameter 1/4"
Neck Length 0.3750" (3/8)
Radial Depth of Cut 0.0530"
