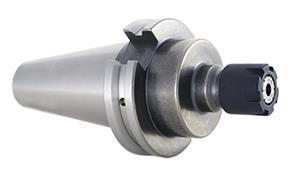

CAT40 x ER20 - 4 Inch, Precision ER Mini Nut Holder
- Item Code: 22362-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 3.87 |
|---|---|
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (in) | 0.019" - 0.55" |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
| Overall Diameter (mm) | 63.5 |
| Body Diameter-Workpiece Side (mm) | 34 |
| Gage Length (in) | 4 |
| Taper | CAT40 |
| Gage Length (mm) | 101.6 |
| Lock Nut Diameter (in) | 1.38 |
| Gage Length-Face Contact (mm) | 98.4 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Overall Length (in) | 6.68 |
| Collet Series | ER20 |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Length (mm) | 169.7 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
