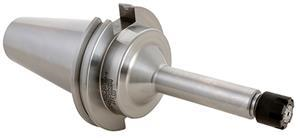

CAT50 x ER16 - 6 Inch, Precision ER Mini Nut Holder
- Item Code: 22366-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Brand | Techniks |
|---|---|
| Gage Length (mm) | 152.4 |
| Material | 8620 Steel |
| Style | Single Ended |
| Capacity Range (in) | 0.019" - 0.41" |
| Capacity Range (mm) | 0.5 - 10.5mm |
| Collet Series | ER16 |
| Gage Length-Face Contact (in) | 5.87 |
| Gage Length-Face Contact (mm) | 149 |
| Lock Nut Diameter (mm) | 32 |
| Overall Diameter (in) | 3.88 |
| Type | V-Flange Collet Chuck |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 1.102 |
| Overall Length (mm) | 254 |
| Overall Diameter (mm) | 98.43 |
| Body Diameter-Workpiece Side (mm) | 28 |
| Lock Nut Diameter (in) | 1.26 |
| Taper | CAT50 |
| Overall Length (in) | 10 |
| Gage Length (in) | 6 |
| Unit of Tool | Metric or Inch |
