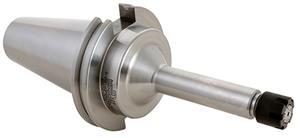

CAT50 x ER20 - 4 Inch, Precision ER Mini Nut Holder
- Item Code: 22368-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Capacity Range (in) | 0.019" - 0.55" |
|---|---|
| Lock Nut Diameter (in) | 1.38 |
| Unit of Tool | Metric or Inch |
| Gage Length-Face Contact (in) | 3.87 |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (mm) | 34 |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
| Gage Length (in) | 4 |
| Overall Length (in) | 8 |
| Collet Series | ER20 |
| Gage Length-Face Contact (mm) | 98.2 |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Length (mm) | 203.2 |
| Gage Length (mm) | 101.6 |
| Material | 8620 Steel |
| Taper | CAT50 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
