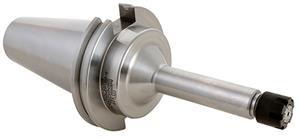

CAT50 x ER20 - 6 Inch, Precision ER Mini Nut Holder
- Item Code: 22370-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket.
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 149 |
|---|---|
| Lock Nut Diameter (in) | 1.38 |
| Capacity Range (mm) | 0.5 - 14mm |
| Gage Length (in) | 6 |
| Gage Length (mm) | 152.4 |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Taper | CAT50 |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Lock Nut Diameter (mm) | 35.1 |
| Material | 8620 Steel |
| Style | Single Ended |
| Overall Length (mm) | 254 |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Capacity Range (in) | 0.019" - 0.55" |
| Body Diameter-Workpiece Side (mm) | 34 |
| Collet Series | ER20 |
| Gage Length-Face Contact (in) | 5.87 |
| Overall Length (in) | 10 |
