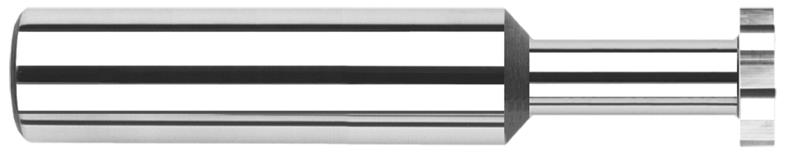

0.3125 in. (5/16) Cutter Diameter x 0.0100 in. Width x 0.4680 in. (15/32) Neck Length 6 Flute Carbide Square Keyseat Cutter

  • Item Code: 22401-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.3125"
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Fractional Diameter 5/16"
Reach Multiple (1.5x)
Coating/Finish None
Cutter Width 0.0100"
Neck Diameter 0.1560" (5/32)
Type I
Brand Harvey Tool
Neck Length 0.4680" (15/32)
Shank Diameter 0.3125" (5/16)
Material Solid Carbide
Radial Depth of Cut 0.0680"
