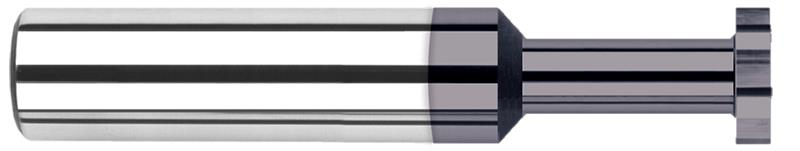

0.3750 in. (3/8) Cutter Diameter x 0.0350 in. Width x 0.5620 in. (9/16) Neck Length 8 Flute AlTiN Coated Carbide Square Keyseat Cutter

  • Item Code: 22512-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.3750"
Type I
Cutter Width 0.0350"
Fractional Diameter 3/8"
Reach Multiple (1.5x)
Number of Flutes 8
Material Solid Carbide
Neck Diameter 0.1870" (3/16)
Shank Diameter 0.3750" (3/8)
Neck Length 0.5620" (9/16)
Radial Depth of Cut 0.0840"
Brand Harvey Tool
Coating/Finish AlTiN
Overall Length 2.5000" (2-1/2)
