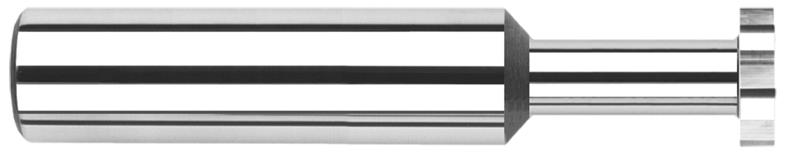

0.5000 in. (1/2) Cutter Diameter x 0.1870 in. (3/16) Width x 0.7500 in. (3/4) Neck Length 8 Flute Carbide Square Keyseat Cutter

  • Item Code: 22670
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 8
Radial Depth of Cut 0.1150"
Type I
Neck Diameter 0.2500" (1/4)
Reach Multiple (1.5x)
Coating/Finish None
Fractional Diameter 1/2"
Overall Length 3.0000" (3)
Cutter Width 0.1870" (3/16)
Decimal Diameter 0.5000"
Material Solid Carbide
Neck Length 0.7500" (3/4)
Brand Harvey Tool
Shank Diameter 0.5000" (1/2)
