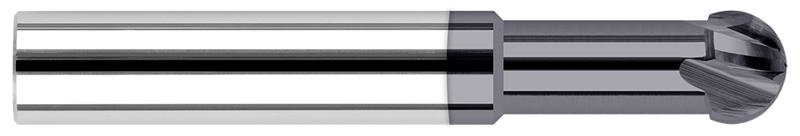

0.0625 in. (1/16) Cutter Diameter x 0.0620 in. (1/16) Neck Length x 220 Deg. 2 Flute AlTiN Coated Carbide Undercutting End Mill

  • Item Code: 22704-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 220 degree spherical ball
    • Designed for undercutting, deburring, and multi-axis machining
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Overall Reach 0.1040"
Radius Fractional 1/32"
Shank Diameter 0.1250" (1/8)
Neck Length 0.0620" (1/16)
Wrap Angle 220
Overall Length 1.5000" (1-1/2)
Decimal Diameter 0.0625"
Material Solid Carbide
Neck Diameter 0.0470" (3/64)
Number of Flutes 2
Coating/Finish AlTiN
Fractional Diameter 1/16"
Length of Cut 0.0420"
Radius Decimal 0.0312"
