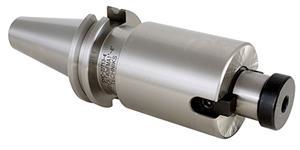

CAT40 Shell Mill Arbor 1.0 Inch - 4.0 Inch
- Item Code: 22713-4
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Coolant Supply | Optional through Arbor Screw |
|---|---|
| Type | Face Mill Arbor |
| Gage Length (mm) | 101.6 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Pilot Length (in) | 0.69 |
| Style | Single Ended |
| Hub Diameter (in) | 1 |
| Body Width (mm) | 55.9 |
| Taper Type | CAT40 |
| Body Width (in) | 2.2 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Gage Length-Face Contact (in) | 3.875 |
| Gage Length-Face Contact (mm) | 98.43 |
| Hub Diameter (mm) | 25.4 |
| Overall Diameter (mm) | 63.5 |
| Pilot Length (mm) | 17.5 |
