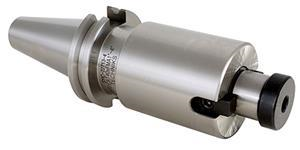

CAT40 Shell Mill Arbor 1-1/4 Inch - 4.0 Inch
- Item Code: 22715-4
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Body Width (mm) | 69.9 |
|---|---|
| Brand | Techniks |
| Gage Length (in) | 4 |
| Hub Diameter (mm) | 31.75 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Pilot Length (mm) | 17.5 |
| Style | Single Ended |
| Type | Face Mill Arbor |
| Gage Length-Face Contact (mm) | 98.43 |
| Taper Type | CAT40 |
| Body Width (in) | 2.75 |
| Gage Length (mm) | 101.6 |
| Hub Diameter (in) | 1.25 |
| Pilot Length (in) | 0.69 |
| Coolant Supply | Optional through Arbor Screw |
| Gage Length-Face Contact (in) | 3.875 |
| Overall Diameter (mm) | 63.5 |
