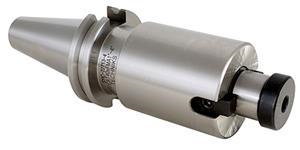

CAT40 Shell Mill Arbor 1-1/2 Inch - 4 Inch
- Item Code: 22717-4
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Brand | Techniks |
|---|---|
| Overall Diameter (mm) | 63.5 |
| Pilot Length (in) | 0.94 |
| Gage Length (in) | 4 |
| Type | Face Mill Arbor |
| Body Width (in) | 3.8 |
| Body Width (mm) | 96.5 |
| Gage Length-Face Contact (in) | 3.875 |
| Hub Diameter (in) | 1.5 |
| Taper Type | CAT40 |
| Gage Length-Face Contact (mm) | 98.43 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Gage Length (mm) | 101.6 |
| Pilot Length (mm) | 23.9 |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (mm) | 38.1 |
| Style | Single Ended |
