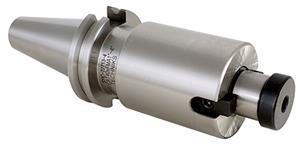

CAT50 Shell Mill Arbor 3/4 Inch - 10 Inch
- Item Code: 22721-10
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Gage Length (mm) | 254 |
|---|---|
| Gage Length-Face Contact (mm) | 250.55 |
| Coolant Supply | Optional through Arbor Screw |
| Gage Length-Face Contact (in) | 9.864 |
| Hub Diameter (mm) | 19.05 |
| Material | 8620 Steel |
| Pilot Length (in) | 0.69 |
| Style | Single Ended |
| Body Width (mm) | 42.9 |
| Hub Diameter (in) | 0.75 |
| Body Width (in) | 1.69 |
| Gage Length (in) | 10 |
| Pilot Length (mm) | 17.5 |
| Overall Diameter (in) | 3.875 |
| Taper Type | CAT50 |
| Brand | Techniks |
| Overall Diameter (mm) | 98.4 |
| Type | Face Mill Arbor |
