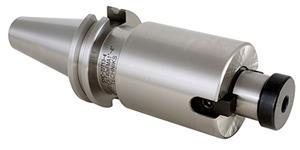

CAT50 Shell Mill Arbor 3/4 Inch - 1.5 Inch
- Item Code: 22721
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Hub Diameter (mm) | 19.05 |
|---|---|
| Overall Diameter (in) | 3.875 |
| Type | Face Mill Arbor |
| Body Width (mm) | 69.9 |
| Brand | Techniks |
| Gage Length-Face Contact (mm) | 34.65 |
| Material | 8620 Steel |
| Pilot Length (mm) | 17.5 |
| Style | Single Ended |
| Body Width (in) | 2.75 |
| Gage Length (in) | 1.5 |
| Taper Type | CAT50 |
| Gage Length (mm) | 38.1 |
| Gage Length-Face Contact (in) | 1.364 |
| Overall Diameter (mm) | 98.4 |
| Pilot Length (in) | 0.69 |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 0.75 |
