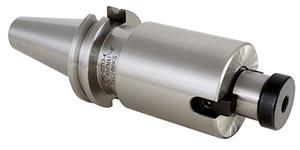

CAT50 Shell Mill Arbor 1 Inch - 4.0 Inch
- Item Code: 22723-4
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 3.864 |
|---|---|
| Body Width (in) | 2.2 |
| Body Width (mm) | 55.9 |
| Hub Diameter (mm) | 25.4 |
| Taper Type | CAT50 |
| Overall Diameter (in) | 3.875 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Overall Diameter (mm) | 98.4 |
| Pilot Length (mm) | 17.5 |
| Type | Face Mill Arbor |
| Style | Single Ended |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 1 |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (mm) | 98.15 |
| Material | 8620 Steel |
| Pilot Length (in) | 0.69 |
