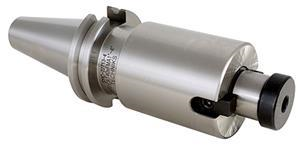

CAT50 Shell Mill Arbor 1-1/4 Inch - 3.5 Inch
- Item Code: 22725-3.5
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Body Width (in) | 2.75 |
|---|---|
| Overall Diameter (mm) | 98.4 |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (mm) | 31.75 |
| Style | Single Ended |
| Type | Face Mill Arbor |
| Body Width (mm) | 69.9 |
| Brand | Techniks |
| Pilot Length (mm) | 17.5 |
| Gage Length (in) | 3.5 |
| Gage Length-Face Contact (in) | 3.364 |
| Taper Type | CAT50 |
| Hub Diameter (in) | 1.25 |
| Overall Diameter (in) | 3.875 |
| Gage Length (mm) | 88.9 |
| Gage Length-Face Contact (mm) | 85.45 |
| Material | 8620 Steel |
| Pilot Length (in) | 0.69 |
