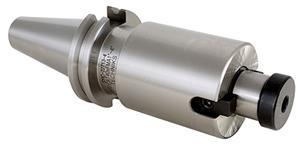

CAT50 Shell Mill Arbor 1-1/4 Inch - 6.0 Inch
- Item Code: 22725-6
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 5.864 |
|---|---|
| Body Width (in) | 2.75 |
| Gage Length-Face Contact (mm) | 148.95 |
| Overall Diameter (mm) | 98.4 |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (mm) | 31.75 |
| Material | 8620 Steel |
| Style | Single Ended |
| Type | Face Mill Arbor |
| Body Width (mm) | 69.9 |
| Brand | Techniks |
| Gage Length (in) | 6 |
| Pilot Length (mm) | 17.5 |
| Taper Type | CAT50 |
| Pilot Length (in) | 0.69 |
| Hub Diameter (in) | 1.25 |
| Gage Length (mm) | 152.4 |
| Overall Diameter (in) | 3.875 |
