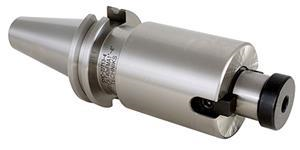

CAT50 Shell Mill Arbor 1-1/2 Inch - 4.0 Inch
- Item Code: 22727-4
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offer H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact.
Tech Specs
Back To Top| Type | Face Mill Arbor |
|---|---|
| Gage Length (mm) | 101.6 |
| Hub Diameter (mm) | 38.1 |
| Body Width (in) | 3.8 |
| Overall Diameter (mm) | 98.4 |
| Pilot Length (mm) | 23.9 |
| Overall Diameter (in) | 3.875 |
| Gage Length-Face Contact (in) | 3.864 |
| Hub Diameter (in) | 1.5 |
| Pilot Length (in) | 0.94 |
| Taper Type | CAT50 |
| Body Width (mm) | 96.5 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Gage Length-Face Contact (mm) | 98.15 |
| Material | 8620 Steel |
| Coolant Supply | Optional through Arbor Screw |
| Style | Single Ended |
