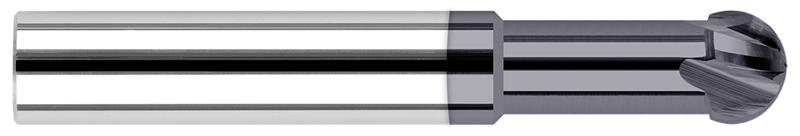

0.0938 in. Cutter Diameter x 0.3750 in. (3/8) Neck Length x 220 Deg. 2 Flute AlTiN Coated Carbide Undercutting End Mill

  • Item Code: 22806-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 220 degree spherical ball
    • Designed for undercutting, deburring, and multi-axis machining
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Reach 0.4380"
Material Solid Carbide
Number of Flutes 2
Radius Fractional 3/64"
Coating/Finish AlTiN
Neck Length 0.3750" (3/8)
Overall Length 1.5000" (1-1/2)
Decimal Diameter 0.0938"
Radius Decimal 0.0469"
Shank Diameter 0.1250" (1/8)
Wrap Angle 220
Brand Harvey Tool
Length of Cut 0.0630"
Neck Diameter 0.0700"
