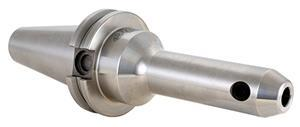

CAT40 x 1/8 Inch Inside Diameter x 6 Inch Length Extended Length End Mill Holder
- Item Code: 22907-6
- Brand: Techniks
- Unit Size: 1
Description
Techniks End Mill Holders are precision machined to an Industry Leading H5 standard I.D. hole tolerance. Techniks Extended Length End Mills are balanced to 10,000 RPM to save spindle bearing life and the Taper is ground to AT3 standard for maximum spindle contact. Each holder is lab certified with an individual report to ensure quality.
Tech Specs
Back To Top| Bore Inside Diameter (in) | 0.125 |
|---|---|
| Nose Diameter (mm) | 17.5 |
| Material | 8620 Steel |
| Overall Length (mm) | 220.6 |
| Gage Length (mm) | 152.4 |
| Style | Single End Extended Length |
| Taper Type | CAT40 |
| Bore Inside Diameter (mm) | 3.2 |
| Type | End Mill Holder |
| Overall Length (in) | 8.69 |
| Brand | Techniks |
| Gage Length (in) | 6 |
| Nose Diameter (in) | 0.69 |
