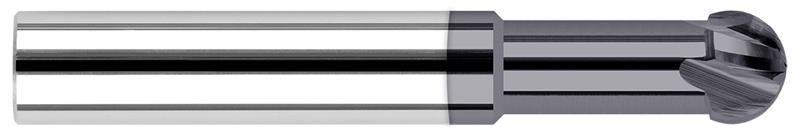

0.1875 in. (3/16) Cutter Diameter x 1.0000 in. (1) Neck Length x 220 Deg. 4 Flute AlTiN Coated Carbide Undercutting End Mill

  • Item Code: 22912-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 220 degree spherical ball
    • Designed for undercutting, deburring, and multi-axis machining
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Reach 1.1260"
Neck Length 1.0000" (1)
Radius Decimal 0.0937"
Brand Harvey Tool
Length of Cut 0.1260"
Material Solid Carbide
Number of Flutes 4
Wrap Angle 220
Neck Diameter 0.1410"
Overall Length 3.0000" (3)
Coating/Finish AlTiN
Shank Diameter 0.1875" (3/16)
Decimal Diameter 0.1875"
Fractional Diameter 3/16"
Radius Fractional 3/32"
