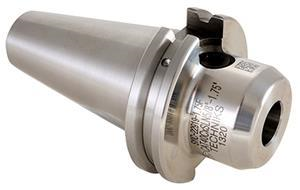

CAT40 x 3/8 Inch Inside Diameter x 2-1/2 Inch Length CoolFLEX End Mill Holder
- Item Code: 22915-2.5F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX End Mill Holders offer coolant capability either through the spindle or through the flange (DIN B). Techniks End Mills offer an Industry Leading H5 bore tolerance to increase tool life and are individually tested in a lab to ensure quality.
Tech Specs
Back To Top| Nose Diameter (mm) | 25.4 |
|---|---|
| Bore Inside Diameter (mm) | 9.5 |
| Brand | Techniks |
| Gage Length (in) | 2.5 |
| Material | 8620 Steel |
| Nose Diameter (in) | 1 |
| Taper Type | CAT40 |
| Overall Length (in) | 5.19 |
| Bore Inside Diameter (in) | 0.375 |
| Overall Length (mm) | 131.7 |
| Type | End Mill Holder |
| Gage Length (mm) | 63.5 |
| Style | Single End CoolFLEX |
