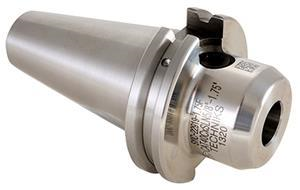

CAT40 x 3/8 Inch Inside Diameter x 3 Inch Length CoolFLEX End Mill Holder
- Item Code: 22915F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX End Mill Holders offer coolant capability either through the spindle or through the flange (DIN B). Techniks End Mills offer an Industry Leading H5 bore tolerance to increase tool life and are individually tested in a lab to ensure quality.
Tech Specs
Back To Top| Gage Length (in) | 3 |
|---|---|
| Overall Length (in) | 5.69 |
| Type | End Mill Holder |
| Nose Diameter (mm) | 25.4 |
| Taper Type | CAT40 |
| Bore Inside Diameter (in) | 0.375 |
| Gage Length (mm) | 76.2 |
| Brand | Techniks |
| Material | 8620 Steel |
| Nose Diameter (in) | 1 |
| Overall Length (mm) | 144.4 |
| Style | Single End CoolFLEX |
| Bore Inside Diameter (mm) | 9.5 |
