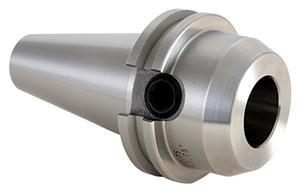

CAT40 x 3/4 Inch Inside Diameter x 1-3/4 Inch Length Stubby Length End Mill Holder
- Item Code: 22921-1.75
- Brand: Techniks
- Unit Size: 1
Description
Techniks End Mill Holders are precision machined to an Industry Leading H5 standard I.D. hole tolerance. Techniks Stubby Length End Mills are balanced to 10,000 RPM to save spindle bearing life and the Taper is ground to AT3 standard for maximum spindle contact. Each holder is lab certified with an individual report to ensure quality.
Tech Specs
Back To Top| Material | 8620 Steel |
|---|---|
| Nose Diameter (mm) | 44.5 |
| Overall Length (in) | 4.44 |
| Bore Inside Diameter (mm) | 19.1 |
| Gage Length (in) | 1.75 |
| Bore Inside Diameter (in) | 0.75 |
| Gage Length (mm) | 44.5 |
| Style | Single End Stubby Length |
| Taper Type | CAT40 |
| Nose Diameter (in) | 1.75 |
| Type | End Mill Holder |
| Brand | Techniks |
| Overall Length (mm) | 112.7 |
