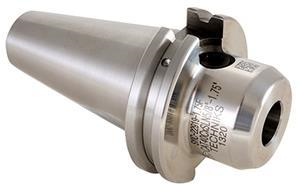

CAT40 x 3/4 Inch Inside Diameter x 1-3/4 Inch Length CoolFLEX End Mill Holder
- Item Code: 22921-1.75F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX End Mill Holders offer coolant capability either through the spindle or through the flange (DIN B). Techniks End Mills offer an Industry Leading H5 bore tolerance to increase tool life and are individually tested in a lab to ensure quality.
Tech Specs
Back To Top| Gage Length (mm) | 44.5 |
|---|---|
| Overall Length (mm) | 112.7 |
| Bore Inside Diameter (in) | 0.75 |
| Type | End Mill Holder |
| Nose Diameter (mm) | 44.5 |
| Brand | Techniks |
| Nose Diameter (in) | 1.75 |
| Style | Single End CoolFLEX |
| Bore Inside Diameter (mm) | 19.1 |
| Taper Type | CAT40 |
| Gage Length (in) | 1.75 |
| Material | 8620 Steel |
| Overall Length (in) | 4.44 |
