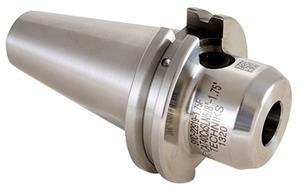

CAT40 x 1 Inch Inside Diameter x 1-3/4 Inch Length CoolFLEX End Mill Holder
- Item Code: 22925-1.75F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX End Mill Holders offer coolant capability either through the spindle or through the flange (DIN B). Techniks End Mills offer an Industry Leading H5 bore tolerance to increase tool life and are individually tested in a lab to ensure quality.
Tech Specs
Back To Top| Gage Length (mm) | 44.5 |
|---|---|
| Taper Type | CAT40 |
| Brand | Techniks |
| Nose Diameter (in) | 2 |
| Nose Diameter (mm) | 50.8 |
| Bore Inside Diameter (mm) | 25.4 |
| Material | 8620 Steel |
| Bore Inside Diameter (in) | 1 |
| Gage Length (in) | 1.75 |
| Overall Length (in) | 4.44 |
| Overall Length (mm) | 112.7 |
| Style | Single End CoolFLEX |
| Type | End Mill Holder |
