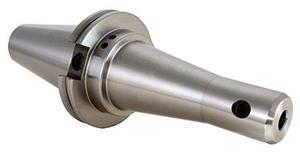

CAT50 x 1 Inch Inside Diameter x 8 Inch Length Rigid Reach End Mill Holder
- Item Code: 22945-8-RR
- Brand: Techniks
- Unit Size: 1
Description
Techniks Rigid Reach End Mill Holders have an extra thick neck for improved rigidity and cutting performance. The I.D. hole tolerance is an Industry Leading H5 standard. The Rigid Reach holders are balanced to 10,000 RPM and the taper is ground to AT3 standard for maximum spindle contact. Each holder is individually certified in a lab for accuracy and comes with a detailed performance report.
Tech Specs
Back To Top| Gage Length (mm) | 203.2 |
|---|---|
| Overall Length (in) | 12 |
| Type | End Mill Holder |
| Bore Inside Diameter (mm) | 25.4 |
| Gage Length (in) | 8 |
| Material | 8620 Steel |
| Bore Inside Diameter (in) | 1 |
| Taper Type | CAT50 |
| Overall Length (mm) | 304.8 |
| Style | Single End Rigid Reach |
| Brand | Techniks |
| Nose Diameter (in) | 2 |
| Nose Diameter (mm) | 50.8 |
