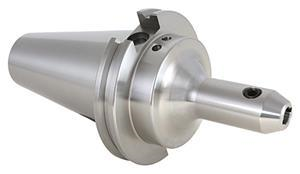

CAT50 x 1-1/4 Inch Inside Diameter x 4.6 Inch Length CoolFLEX End Mill Holder
- Item Code: 22947F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX End Mill Holders offer coolant capability either through the spindle or through the flange (DIN B). Techniks End Mills offer an Industry Leading H5 bore tolerance to increase tool life. The holders are balanced to 10,000 RPMS and are individually tested in a lab to ensure quality.
Tech Specs
Back To Top| Brand | Techniks |
|---|---|
| Style | Single End CoolFLEX |
| Gage Length (mm) | 116.8 |
| Overall Length (in) | 8.6 |
| Gage Length (in) | 4.6 |
| Nose Diameter (in) | 2.5 |
| Nose Diameter (mm) | 63.5 |
| Overall Length (mm) | 218.4 |
| Taper Type | CAT50 |
| Type | End Mill Holder |
| Bore Inside Diameter (in) | 1.25 |
| Bore Inside Diameter (mm) | 31.8 |
| Material | 8620 Steel |
