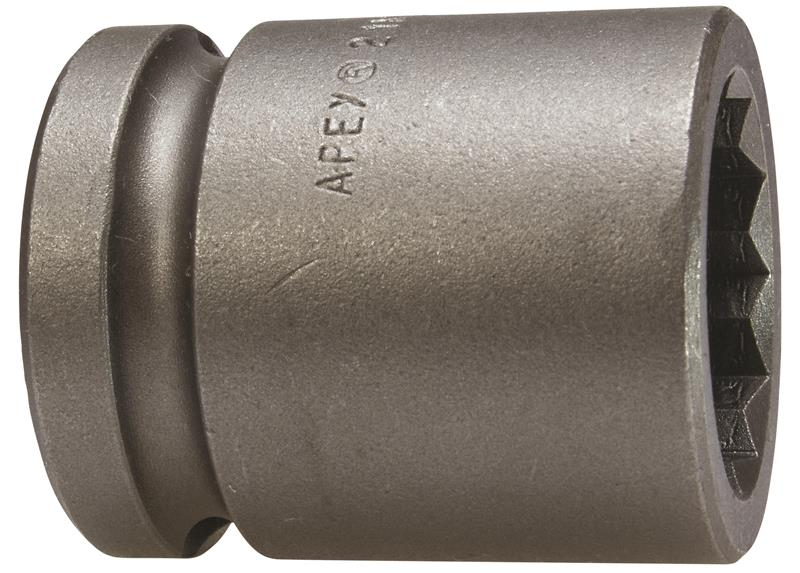

22mm Metric Standard Socket, 1/2 Inch Square Drive
- Item Code: 22MM15
- Brand: Apex
- Unit Size: 1
Description
6 Point & Double Hex, Standard Length
Features
Back To Top- Impact Rated; Meets or Exceeds Proof Torque Requirement for Impact Standard ASME B107.113
- Made in the USA - Quality and Availability
- High-Carbon Alloy Steel and Proprietary Heat Treat Process Yields Greater Strength and Longer Life
- Cutting-edge Machining Process Allows Apex to Meet or Exceed Licensor Standards, Resulting in Tighter Tolerances and Superior Product Consistency
- Better and More Consistent Fit to Fasteners Leads to Better Torque Transfer
Tech Specs
Back To Top| Socket Type Length | Standard |
|---|---|
| Brand | Apex |
| Diameter Drive End (C) | 33.3 mm |
| Hex Opening | 22 mm |
| Opening Depth (D) | 14.3 mm |
| Tool Type | 1/2” Square Drive Sockets, Metric |
| Diameter Nose End (B) | 33.3 mm |
| Type | Socket |
| Opening Modifer | 6 Point Hex |
| Magnetism | Non-Magnetic |
| Overall Length (A) | 38.1 mm |
| U-Guard | No |
