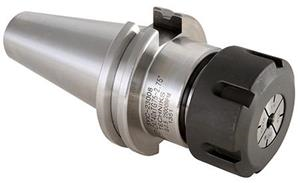

CAT40 x TG75 - 2.75 Inch Collet Chuck Tool Holder
- Item Code: 23008-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Balanced to | 25,000 RPM at G2.5 |
|---|---|
| Capacity Range (in) | 0.094" - 0.75" |
| Capacity Range (mm) | 2.4 - 19.1mm |
| Collet Series | TG75 |
| Gage Length (mm) | 69.85 |
| Gage Length-Face Contact (mm) | 66.7 |
| Lock Nut Diameter (in) | 1.88 |
| Lock Nut Diameter (mm) | 47.8 |
| Gage Length (in) | 2.75 |
| Overall Length (in) | 5.44 |
| Unit of Tool | Metric or Inch |
| Type | V-Flange Collet Chuck |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 50 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Overall Diameter (mm) | 63.5 |
| Taper | CAT40 |
| Brand | Techniks |
| Gage Length-Face Contact (in) | 2.63 |
| Overall Length (mm) | 138.2 |
