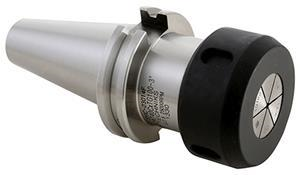

CAT40 x TG100 - 3 Inch Collet Chuck Tool Holder
- Item Code: 23014
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Balanced to | 25,000 RPM at G2.5 |
|---|---|
| Brand | Techniks |
| Lock Nut Diameter (mm) | 59.7 |
| Body Diameter-Workpiece Side (mm) | 60 |
| Lock Nut Diameter (in) | 2.35 |
| Overall Diameter (in) | 2.5 |
| Gage Length-Face Contact (in) | 2.87 |
| Overall Length (in) | 5.68 |
| Unit of Tool | Metric or Inch |
| Capacity Range (mm) | 2.4 - 25.4mm |
| Overall Length (mm) | 144.3 |
| Capacity Range (in) | 0.094" - 1" |
| Gage Length (in) | 3 |
| Overall Diameter (mm) | 63.5 |
| Body Diameter-Workpiece Side (in) | 2.362 |
| Gage Length (mm) | 76.2 |
| Gage Length-Face Contact (mm) | 73 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Taper | CAT40 |
| Collet Series | TG100 |
| Material | 8620 Steel |
