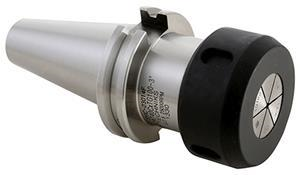

CAT40 x TG100 - 3 Inch CoolFLEX Collet Chuck Tool Holder
- Item Code: 23014F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 2.87 |
|---|---|
| Overall Length (mm) | 144.3 |
| Lock Nut Diameter (mm) | 59.7 |
| Overall Diameter (mm) | 63.5 |
| Taper | CAT40 |
| Body Diameter-Workpiece Side (mm) | 60 |
| Collet Series | TG100 |
| Lock Nut Diameter (in) | 2.35 |
| Overall Length (in) | 5.68 |
| Body Diameter-Workpiece Side (in) | 2.362 |
| Capacity Range (in) | 0.094" - 1" |
| Type | V-Flange Collet Chuck |
| Unit of Tool | Metric or Inch |
| Gage Length (in) | 3 |
| Gage Length (mm) | 76.2 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Gage Length-Face Contact (mm) | 73 |
| Capacity Range (mm) | 2.4 - 25.4mm |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
