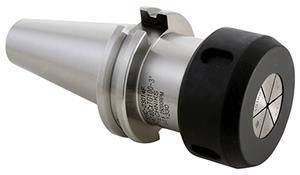

CAT40 x TG100 - 4 Inch Collet Chuck Tool Holder
- Item Code: 23016-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Lock Nut Diameter (mm) | 59.7 |
|---|---|
| Collet Series | TG100 |
| Material | 8620 Steel |
| Capacity Range (mm) | 2.4 - 25.4mm |
| Gage Length-Face Contact (in) | 3.87 |
| Taper | CAT40 |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (in) | 0.094" - 1" |
| Overall Length (in) | 6.68 |
| Body Diameter-Workpiece Side (mm) | 60 |
| Gage Length (mm) | 101.6 |
| Lock Nut Diameter (in) | 2.35 |
| Gage Length (in) | 4 |
| Gage Length-Face Contact (mm) | 98.4 |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (in) | 2.362 |
| Overall Length (mm) | 169.7 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
