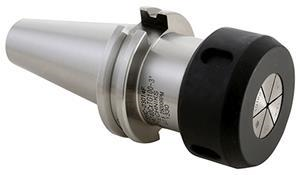

CAT40 x TG100 - 6 Inch CoolFLEX Collet Chuck Tool Holder
- Item Code: 23018F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Body Diameter-Workpiece Side (in) | 2.362 |
|---|---|
| Capacity Range (in) | 0.094" - 1" |
| Brand | Techniks |
| Gage Length (mm) | 152.4 |
| Lock Nut Diameter (mm) | 59.7 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 63.5 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
| Overall Length (in) | 8.68 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (mm) | 60 |
| Gage Length (in) | 6 |
| Gage Length-Face Contact (mm) | 149.2 |
| Overall Diameter (in) | 2.5 |
| Overall Length (mm) | 220.5 |
| Collet Series | TG100 |
| Balanced to | 25,000 RPM at G2.5 |
| Taper | CAT40 |
| Capacity Range (mm) | 2.4 - 25.4mm |
| Gage Length-Face Contact (in) | 5.87 |
| Lock Nut Diameter (in) | 2.35 |
