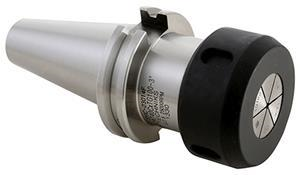

CAT50 x TG100 - 3 Inch CoolFLEX Collet Chuck Tool Holder
- Item Code: 23030F
- Brand: Techniks
- Unit Size: 1
Description
Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.
Tech Specs
Back To Top| Capacity Range (mm) | 2.4 - 25.4mm |
|---|---|
| Lock Nut Diameter (in) | 2.35 |
| Overall Length (mm) | 178.1 |
| Body Diameter-Workpiece Side (in) | 2.362 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Type | V-Flange Collet Chuck |
| Brand | Techniks |
| Gage Length (mm) | 76.2 |
| Lock Nut Diameter (mm) | 59.7 |
| Material | 8620 Steel |
| Style | Single Ended |
| Gage Length-Face Contact (mm) | 72.8 |
| Balanced to | 25,000 RPM at G2.5 |
| Collet Series | TG100 |
| Taper | CAT50 |
| Body Diameter-Workpiece Side (mm) | 60 |
| Gage Length-Face Contact (in) | 2.87 |
| Overall Length (in) | 7.01 |
| Capacity Range (in) | 0.094" - 1" |
| Gage Length (in) | 3 |
| Unit of Tool | Metric or Inch |
