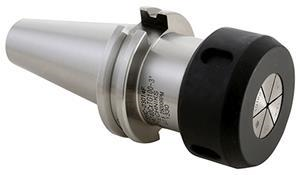

CAT50 x TG100 - 4 Inch Collet Chuck Tool Holder
- Item Code: 23032-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Overall Length (in) | 8.01 |
|---|---|
| Lock Nut Diameter (in) | 2.35 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Lock Nut Diameter (mm) | 59.7 |
| Material | 8620 Steel |
| Style | Single Ended |
| Body Diameter-Workpiece Side (in) | 2.362 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Type | V-Flange Collet Chuck |
| Body Diameter-Workpiece Side (mm) | 60 |
| Overall Length (mm) | 203.5 |
| Balanced to | 25,000 RPM at G2.5 |
| Collet Series | TG100 |
| Gage Length (mm) | 101.6 |
| Gage Length-Face Contact (mm) | 98.2 |
| Taper | CAT50 |
| Capacity Range (mm) | 2.4 - 25.4mm |
| Capacity Range (in) | 0.094" - 1" |
| Gage Length-Face Contact (in) | 3.87 |
| Unit of Tool | Metric or Inch |
