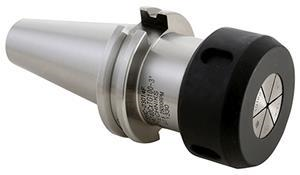

CAT50 x TG100 - 6 Inch Collet Chuck Tool Holder
- Item Code: 23034-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Overall Length (in) | 10.01 |
|---|---|
| Taper | CAT50 |
| Overall Diameter (in) | 3.88 |
| Type | V-Flange Collet Chuck |
| Body Diameter-Workpiece Side (in) | 2.362 |
| Capacity Range (in) | 0.094" - 1" |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Brand | Techniks |
| Gage Length (mm) | 152.4 |
| Lock Nut Diameter (mm) | 59.7 |
| Material | 8620 Steel |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 60 |
| Gage Length (in) | 6 |
| Overall Length (mm) | 254.3 |
| Capacity Range (mm) | 2.4 - 25.4mm |
| Gage Length-Face Contact (in) | 5.87 |
| Lock Nut Diameter (in) | 2.35 |
| Collet Series | TG100 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length-Face Contact (mm) | 149 |
