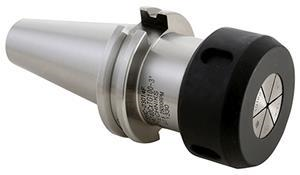

CAT50 x TG100 - 8 Inch Collet Chuck Tool Holder
- Item Code: 23035-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.
Tech Specs
Back To Top| Collet Series | TG100 |
|---|---|
| Capacity Range (mm) | 2.4 - 25.4mm |
| Gage Length (in) | 8 |
| Body Diameter-Workpiece Side (mm) | 60 |
| Lock Nut Diameter (in) | 2.35 |
| Brand | Techniks |
| Gage Length-Face Contact (mm) | 199.8 |
| Lock Nut Diameter (mm) | 59.7 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length-Face Contact (in) | 7.87 |
| Overall Length (in) | 12.01 |
| Capacity Range (in) | 0.094" - 1" |
| Material | 8620 Steel |
| Overall Length (mm) | 305.1 |
| Taper | CAT50 |
| Unit of Tool | Metric or Inch |
| Overall Diameter (in) | 3.88 |
| Body Diameter-Workpiece Side (in) | 2.362 |
| Gage Length (mm) | 203.2 |
| Overall Diameter (mm) | 98.43 |
| Style | Single Ended |
| Type | V-Flange Collet Chuck |
