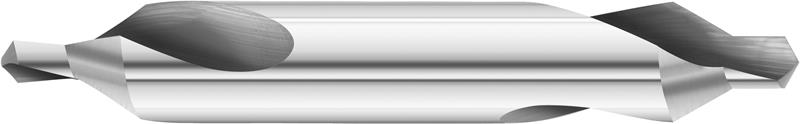

5/64 (.0781) Solid Carbide, 60° Included Angle, Double End, Series 2305 Center Drill

  • Item Code: 23102
  • Brand: Fullerton
  • Unit Size: 1

Description

Fullerton's solid carbide 2305 series Center Drill is a combination drill and countersink used in a wide variety of materials. With this design, centering and chamfering can be accomplished in a single operation.

Features Tech Specs

Features

Back To Top
    • 2 Flutes
    • 118° Cam Relieved Pilot Point
    • 60°, 82° & 90° Included Angle Countersinks
    • Right Hand Spiral
    • Right Hand Cut
    • Double End
    • Standard Uncoated
    • Metric and Inch Based Tools
    • Dura Carb (Micrograin)
    • Shank Diameter Tolerance: h6
    • Pilot Diameter Tolerance: +.003“ -. 000” / +0.08  -0.00mm

Tech Specs

Back To Top
Decimal Diameter 0.0781"
Material Solid Carbide
Brand Fullerton
Fractional Diameter 5/64"
