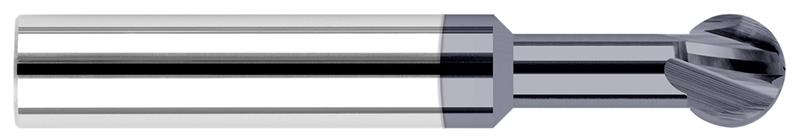

0.2500 in. (1/4) Cutter Diameter x 0.1250 in. (1/8) Neck Length x 270 Deg. 4 Flute AlTiN Coated Carbide Undercutting End Mill

  • Item Code: 23116-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 270 degree spherical ball
    • Designed for undercutting, deburring and multi-axis machining
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.2500"
Brand Harvey Tool
Length of Cut 0.2130"
Material Solid Carbide
Neck Diameter 0.1580"
Number of Flutes 4
Radius Fractional 1/8"
Shank Diameter 0.2500" (1/4)
Fractional Diameter 1/4"
Wrap Angle 270
Coating/Finish AlTiN
Radius Decimal 0.1250"
Overall Reach 0.3380"
Neck Length 0.1250" (1/8)
Overall Length 2.5000" (2-1/2)
