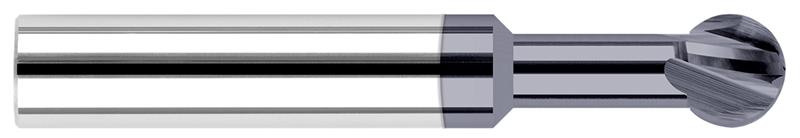

0.3125 in. (5/16) Cutter Diameter x 0.1870 in. (3/16) Neck Length x 270 Deg. 4 Flute AlTiN Coated Carbide Undercutting End Mill

  • Item Code: 23120-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 270 degree spherical ball
    • Designed for undercutting, deburring and multi-axis machining
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Reach 0.4530" (29/64)
Fractional Diameter 5/16"
Decimal Diameter 0.3125"
Length of Cut 0.2660"
Neck Diameter 0.2010"
Overall Length 2.5000" (2-1/2)
Wrap Angle 270
Coating/Finish AlTiN
Radius Decimal 0.1562"
Material Solid Carbide
Number of Flutes 4
Shank Diameter 0.3125" (5/16)
Neck Length 0.1870" (3/16)
Radius Fractional 5/32"
Brand Harvey Tool
