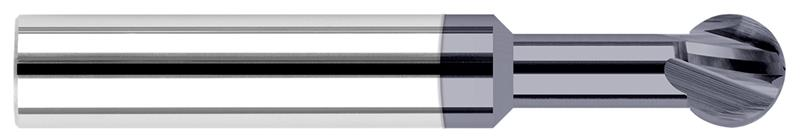

0.1875 in. (3/16) Cutter Diameter x 0.5000 in. (1/2) Neck Length x 270 Deg. 4 Flute AlTiN Coated Carbide Undercutting End Mill

  • Item Code: 23212-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 270 degree spherical ball
    • Designed for undercutting, deburring and multi-axis machining
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Neck Diameter 0.1170"
Radius Decimal 0.0937"
Radius Fractional 3/32"
Material Solid Carbide
Overall Length 2.0000" (2)
Coating/Finish AlTiN
Fractional Diameter 3/16"
Wrap Angle 270
Decimal Diameter 0.1875"
Length of Cut 0.1600"
Shank Diameter 0.1875" (3/16)
Overall Reach 0.6600"
Neck Length 0.5000" (1/2)
Number of Flutes 4
