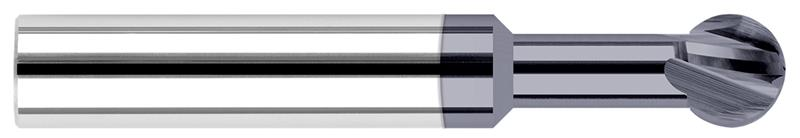

0.3750 in. (3/8) Cutter Diameter x 0.7500 in. (3/4) Neck Length x 270 Deg. 4 Flute AlTiN Coated Carbide Undercutting End Mill

  • Item Code: 23224-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 270 degree spherical ball
    • Designed for undercutting, deburring and multi-axis machining
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish AlTiN
Decimal Diameter 0.3750"
Material Solid Carbide
Neck Length 0.7500" (3/4)
Number of Flutes 4
Overall Reach 1.0700"
Radius Decimal 0.1875"
Overall Length 2.5000" (2-1/2)
Shank Diameter 0.3750" (3/8)
Fractional Diameter 3/8"
Neck Diameter 0.2410"
Length of Cut 0.3200"
Radius Fractional 3/16"
Wrap Angle 270
