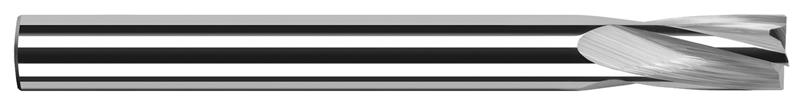

0.3937 in. (10 mm) Cutter Diameter x 1.0000 in. (1) Flute Length 4 Flute Carbide Flat Bottom Counterbore

  • Item Code: 2340M
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • For spot facing or counterboring on irregular surfaces
    • Flat bottom (no dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved, or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylindrical margin (not side cutting)
    • 15 degree helix
    • 4 flutes
    • Solid Carbide
    • AlTiN coating for increased performance in ferrous materials
    • AlTiN Nano coating for superior performance in ferrous and difficult to machine materials
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.4375" (7/16)
Flute Length 1.0000" (1)
Material Solid Carbide
Metric Cutting Diameter 10.00 mm
Overall Length 2.7500" (2-3/4)
Number of Flutes 4
Brand Harvey Tool
Coating/Finish None
Decimal Cutting Diameter 0.3937"
