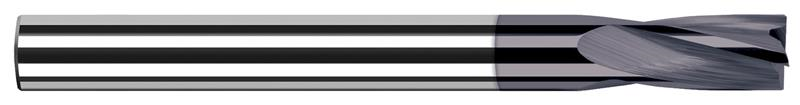

0.1562 in. (5/32) Cutter Diameter x 0.6250 in. (5/8) Flute Length 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 23410-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • For spot facing or counterboring on irregular surfaces
    • Flat bottom (no dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved, or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylindrical margin (not side cutting)
    • 15 degree helix
    • 4 flutes
    • Solid Carbide
    • AlTiN coating for increased performance in ferrous materials
    • AlTiN Nano coating for superior performance in ferrous and difficult to machine materials
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.1562"
Fractional Cutting Diameter 5/32"
Shank Diameter 0.1875" (3/16)
Material Solid Carbide
Brand Harvey Tool
Coating/Finish AlTiN
Flute Length 0.6250" (5/8)
Number of Flutes 4
Overall Length 2.0000" (2)
